我们如何设计一座 PCB 工厂How we design a PCB plant
从一个产能目标，到一座能长期低成本运行的工厂。设计咨询 + 工程安装 + 运维管理，一家统管，一个责任出口。From a capacity target to a plant that runs cheaply for decades — design, installation and operation from one group, with one point of responsibility.
一座 PCB 工厂，要同时跑起来 23 个系统A PCB plant runs 23 systems at once
这 23 个系统彼此耦合：冷冻站的水温决定末端盘管面积，空压机的排热决定热水系统的热源，废气排风口的位置决定冷却塔的效率。They are coupled: chilled-water temperature sets coil sizes, compressor heat sets the hot-water source, exhaust outlets set cooling-tower efficiency.
瀚鼎的定位：工程技术系统集成商——这 23 个系统全部在我们的业务范围内，一家统管。Hanstar’s position: an engineering systems integrator — all 23 systems are within our scope, managed by one company.
这道题难在五个地方Why it is hard: five reasons
正因为难在这五处，业主真正需要的不是某个专业的施工队，而是有人替他把整道题算清楚、并对结果负责。Because of these five, an owner needs someone who works the whole problem and answers for the result — not a trade contractor.
- 01
专业范围广Broad scope
20 多个专业互相牵连，任何一个孤立设计都会在别处付出代价。Twenty-plus disciplines interlock; any isolated design is paid for elsewhere.
- 02
适用性Fit
要从使用者角度出发，按真实生产情况调整，避免设计过剩或不足。Design from the user’s side and to real production, avoiding over- and under-design.
- 03
多样性Choice
多种方案都能满足末端，但在经济、能耗、安全、运维上差异极大——这才是设计真正的价值所在。Many schemes satisfy the terminals but differ hugely in cost, energy, safety and upkeep — that is where design earns its value.
- 04
复杂性强Complexity
从选型到调试要考虑系统耦合、设备联锁反应，甚至材料相容性。From selection to commissioning: system coupling, interlocks, even material compatibility.
- 05
技术性强Depth
横跨机械、电气、自控、仪表，才能保证系统稳定、可靠与经济。Mechanical, electrical, controls and instrumentation together make a system stable, reliable and economical.
瀚鼎解法：The Hanstar answer: 同一集团内完成设计 → 自控 → 安装 → 运维，一个责任出口。design → controls → installation → operation inside one group, one point of responsibility.
常见做法为什么失败 · 机电设计的六大坑Why the usual approach fails: six M&E design traps
| NO. | 坑Trap | 代价Cost | 我们的解法Our fix |
|---|---|---|---|
| 01 | 需求性招标：没有系统性设计就直接招标Tendering on a wish-list with no system design | 方案参差不齐，竞标价格差异过大，无从比较Incomparable proposals and wildly different prices | 设计标单独发包，由设计单位完成整体机电设计Tender the design separately; one designer owns the whole M&E scheme |
| 02 | 招标文件专业度不足Unprofessional tender documents | 答疑反复、文件反复修正，商务拖慢建设计划Endless clarifications and revisions delay the schedule | 系统性招标文件，竞标方一次看懂、快速报价Systematic documents bidders understand at first read and price fast |
| 03 | 工程范围模糊Vague scope | 漏项多、追加多，预算不可控Omissions and add-ons blow the budget | 按专业列全工程节点，双方明确负责范畴List every node per discipline; both sides sign off responsibilities |
| 04 | 品牌及技术要求不够细致Loose brand and technical specs | 工程质量问题投运后才暴露Quality problems surface only after start-up | 品牌库＋施工工艺与技术要求写清楚，质量可把控A brand library plus written workmanship and technical requirements |
| 05 | 非本行业设计模式Design patterns from other industries | 能耗高、美观度低、运维困难、投资高High energy use, poor looks, hard maintenance, high capex | 115 项选配定制设计，按业主诉求逐项比选115 configurable options compared item by item against the owner’s needs |
| 06 | 机电 BIM 建模缺失No M&E BIM | 碰撞交叉、管道折弯增多，系统运行能耗被抬高Clashes and extra bends push up running energy | 全专业 BIM，碰撞无所遁形，管道阻力达设计标准Full-discipline BIM: clashes exposed, pipe resistance held to design |
我们的答法 · 从产能目标到投产的五个阶段Our method: five stages from capacity target to start-up
交付周期 35 个工作日：平面图 3 天 → 技术沟通 1 天 → 方案与图纸 16 天 → 技术确认 2 天 → 图纸完善 5 天 → 清单与招标资料 7 天 → 交接 1 天。35 working days: layouts 3 d → review 1 d → concept & drawings 16 d → confirmation 2 d → completion 5 d → BoQ & tender 7 d → handover 1 d.
定题Define
设计范围确认、设计组织架构、设计进度计划表。Confirm scope, design organisation and schedule.
校数Verify data
水电气基础数据分析、无尘室参数校对、工艺末端优化 8 项。Analyse utility baselines, check cleanroom parameters, eight process-terminal optimisations.
选方案Select options
115 项选配逐项比选，方案设计书与设备选型、机房布局。Compare 115 options one by one; concept report, equipment selection, plant-room layout.
出图Drawings
平面图纸设计与全专业 BIM 建模，碰撞检查与管线优化。Plans plus full-discipline BIM with clash detection and routing optimisation.
发包Tender
技术要求、品牌库、工程范围、工程清单、招标文件编制。Technical requirements, brand library, scope, BoQ and tender documents.
先把范围、人、时间钉死Pin down scope, people and time
23 个系统逐项签字——哪些由我们做、哪些业主自理、哪些由设备厂商随机配套；每个专业都有署名负责人，对接人固定、不换人、不转手；35 个工作日七个节点，顺序排序、进度透明。All 23 systems signed off one by one — ours, the owner’s, the equipment vendors’; a named lead for every discipline, no hand-offs; seven milestones in 35 working days, in sequence and transparent.
业主给的数据，我们先校一遍We verify the owner’s data first
用瀚鼎项目数据库与已完工项目实测值，比对业主提供的设备需求；按以往 PCB 无尘室的温湿度与洁净度要求逐项校对；以机电系统设计为主体，让工艺设备末端配置随系统工况调整——工艺设备末端优化 8 项。Owner-supplied demands are checked against our project database and measured values from completed plants; cleanroom parameters against past PCB cleanrooms; and terminal equipment is configured to suit the system — eight process-terminal optimisations.
115 项选配，逐项算给业主看115 options, each costed for the owner
暖通 27 项、给排水 49 项、环保 17 项、配电 13 项、通用 9 项——每一项都附功能性差异说明、造价成本差异、节能收益测算与运维影响。业主自己选，我们不替业主决定花钱的方式。HVAC 27, water 49, environmental 17, power 13, general 9 — each with its functional difference, cost delta, savings estimate and O&M impact. The owner chooses; we never decide how the owner spends.

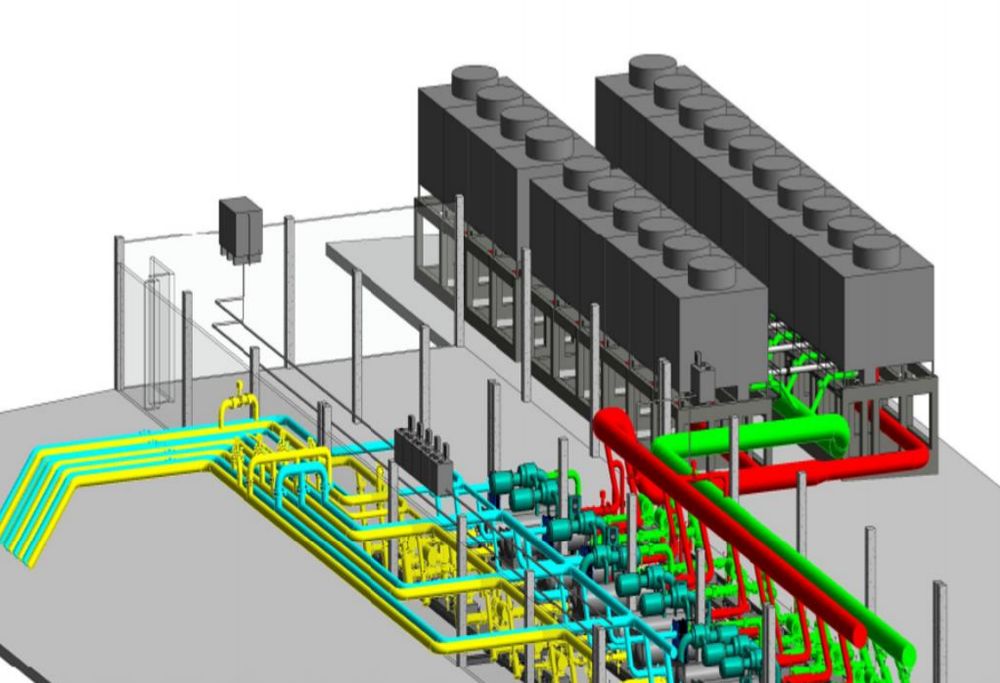

BIM方案设计书与全专业 BIM 建模Concept report and full-discipline BIM

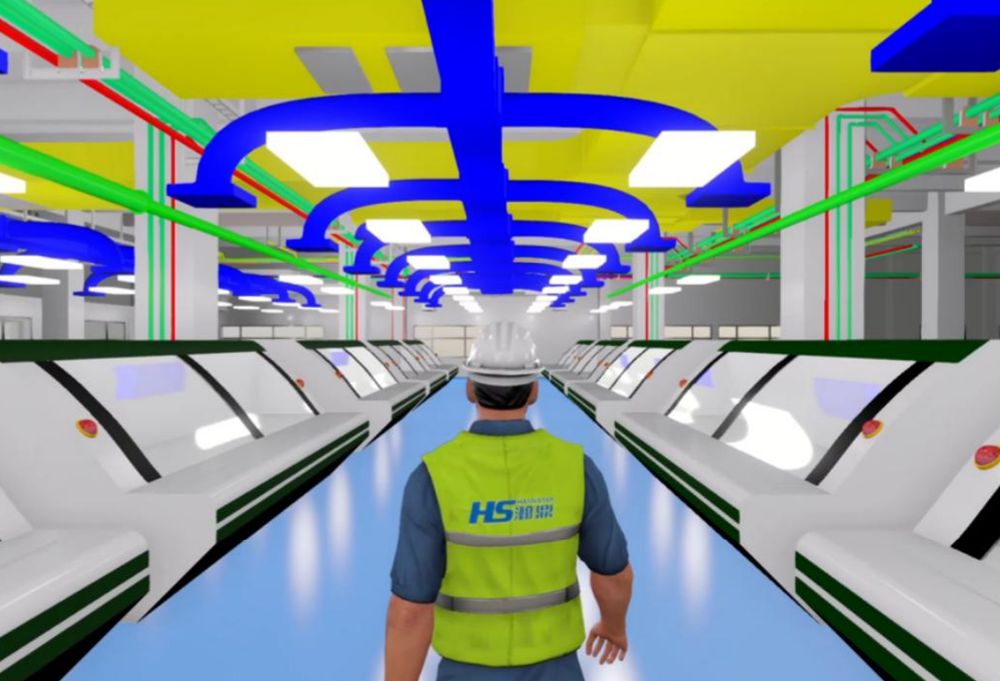

以系统为单位的整厂机电设计方案书：需求统计、方案设计、设备选型、机房布局及定位、管道走向、选配项设计。BIM 由瀚鼎自有建模组完成：机房 + 车间 + 管井与室外管路，配漫游视频并与现场实际安装逐处对照。A whole-plant M&E concept report by system — demand, concept, equipment, plant-room layout, routing, options — and BIM by our own team: plant rooms, workshops, shafts and outdoor lines, with walk-throughs checked against the installed work.
BIM 真正解决的两件事：What BIM really fixes: 让施工碰撞在开工前暴露；确保管道阻力达到设计标准——阻力不达标，后面的水泵电费就年年白交。clashes surface before work starts, and pipe resistance is held to design — otherwise the pump bills are wasted every year.
让预算守得住的四件套The four-part pack that holds the budget
各专业技术要求（施工界面、设计规范、主体设备参数、施工工艺、材料）；品牌库（价格、质量、售后、性价比四维，我们给依据，不替业主拍板）；工程范围与工程清单（无漏项、无争议，综合单价／总价双口径）；招标文件（招标书、招标图纸、专业要求、清单）。Technical requirements per discipline; a brand library rated on price, quality, service and value; scope and BoQ with no omissions or disputes; and the tender documents — bidders understand at first read and price fast.

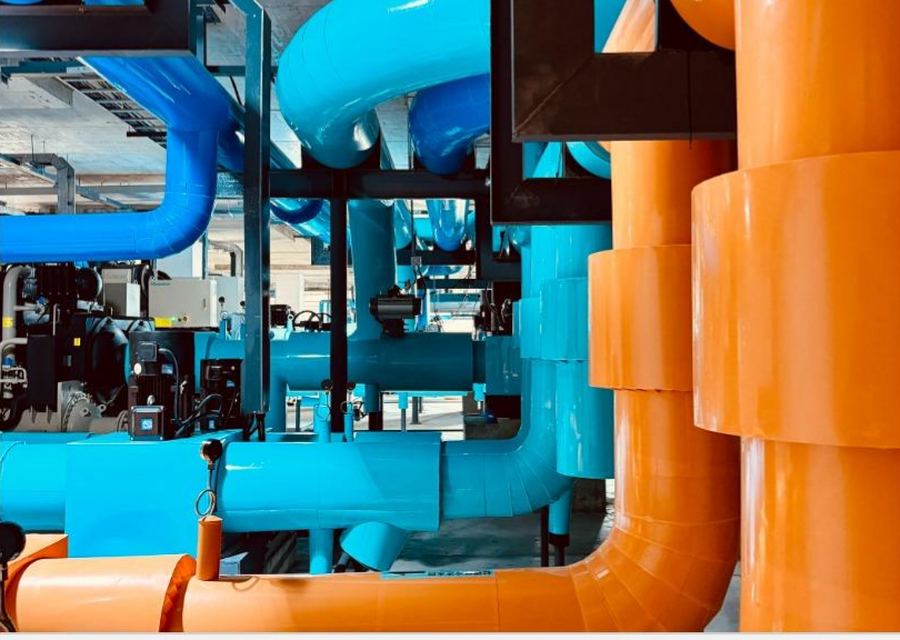

设计之后 · 八类机房，我们自己交付After design: eight plant rooms, delivered by us

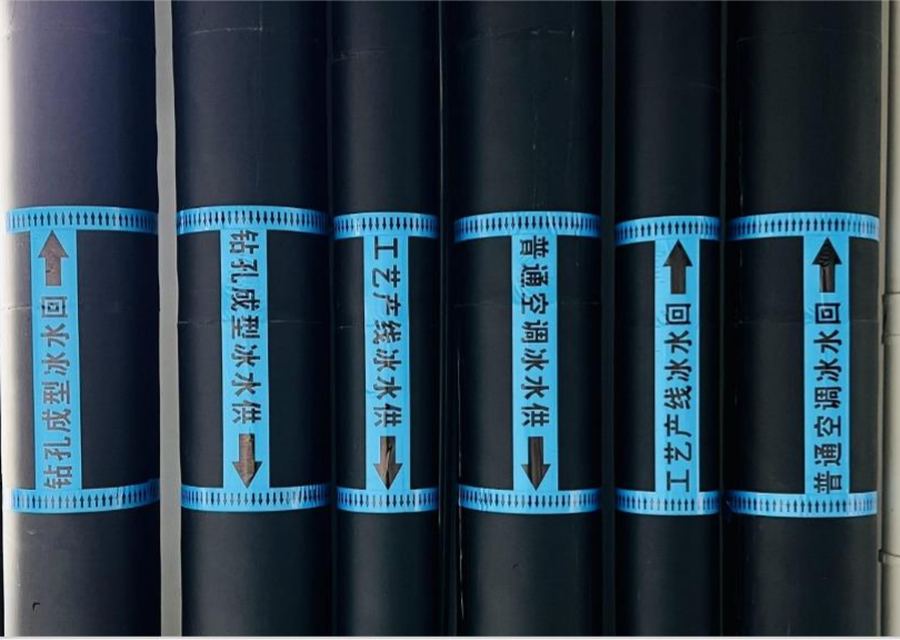

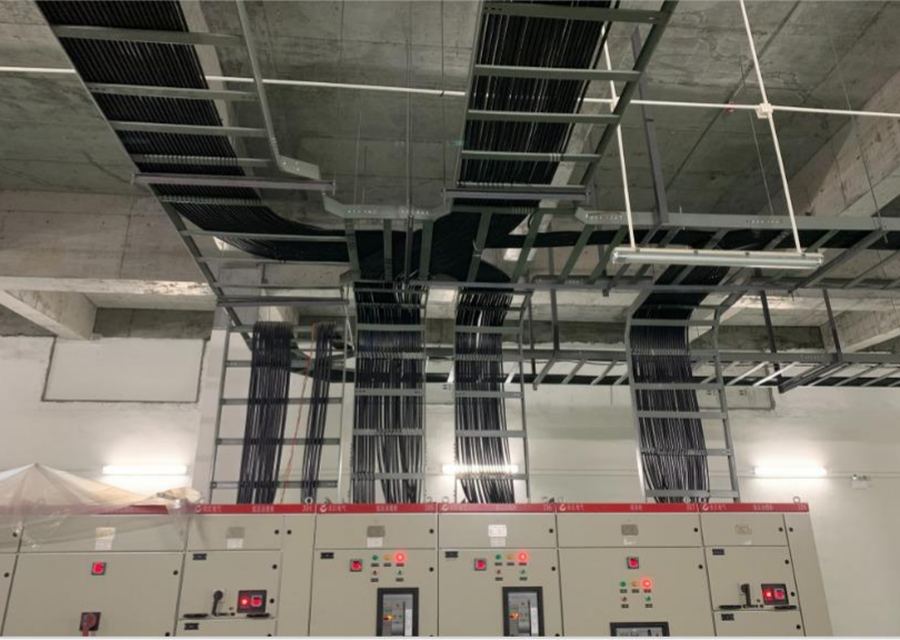

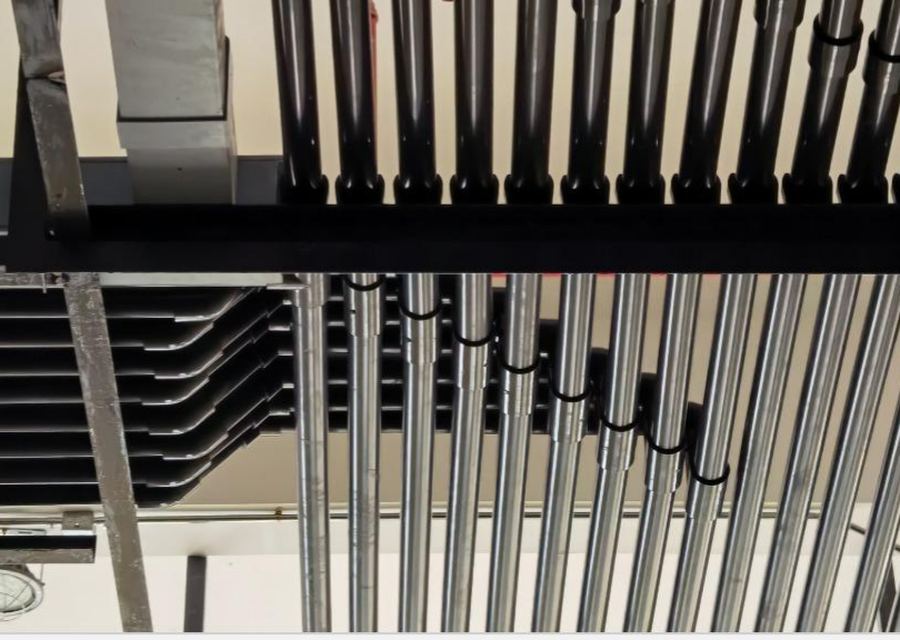

洁净装修与管道安装 · 工艺水准看细节Cleanroom fit-out and pipework: workmanship in the details
交付之后 · 我们还留在现场After handover, we stay on site
设计、施工、运维在同一集团内闭环——这是我们敢对运行能效承担责任的前提。Design, construction and operation close the loop inside one group — that is why we can take responsibility for running efficiency.

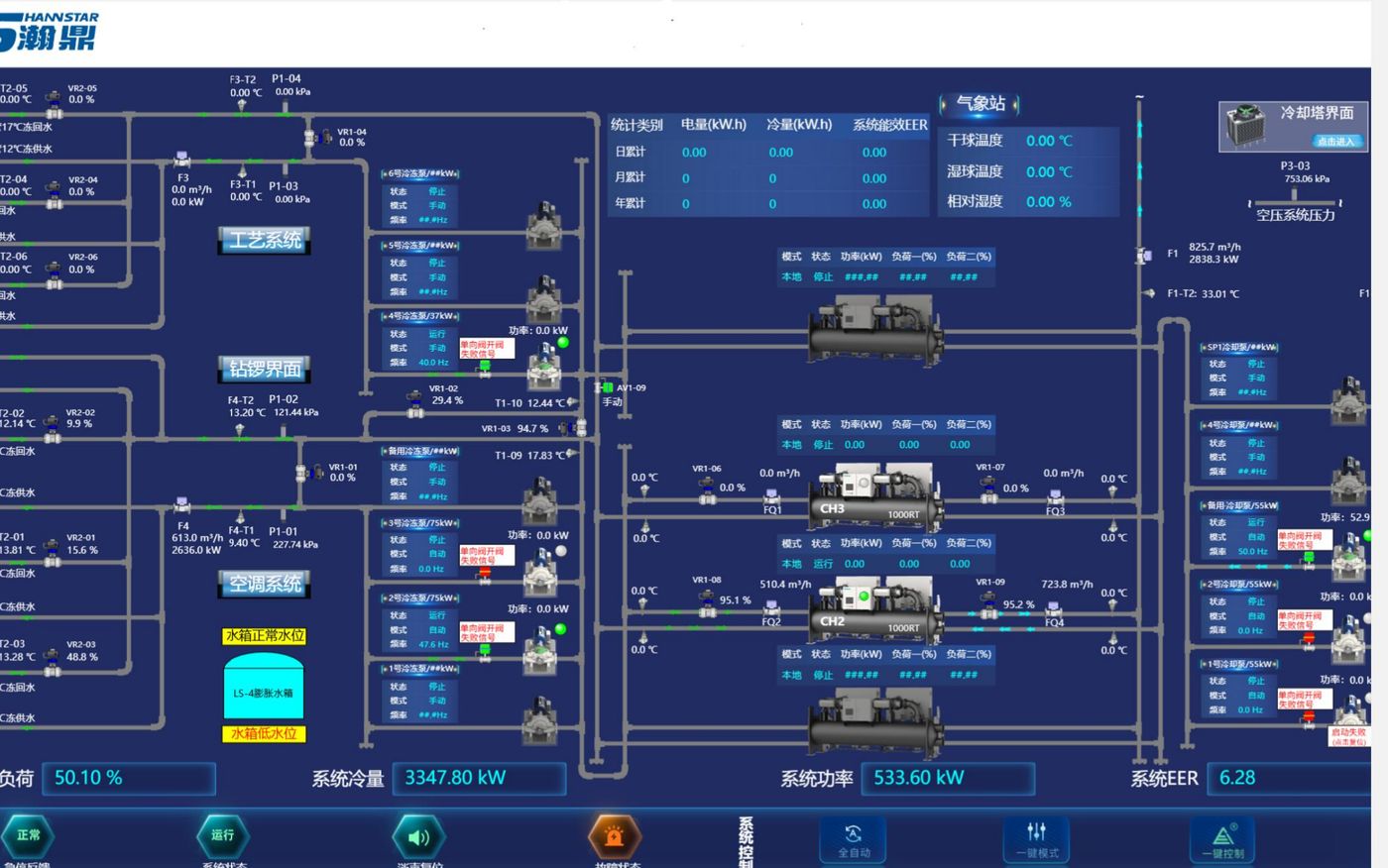

FMCS单机—系统—控制三级联调，水力平衡与运行再平衡Unit, system and control commissioning in three tiers; hydraulic balancing and re-balancing in operation
整厂水电气冷热按车间／产线／系统分摊计量Water, power, gas, heating and cooling metered per workshop, line and system
冷冻站、空压站、热水站、废气与集尘统一纳管寻优Chiller, compressor, hot-water, exhaust and dust plants optimised under one controller
设备性能模型偏离即预警，按需维护替代定期维护Alerts when performance drifts from the model; maintenance on condition, not calendar
节能量以在线计量数据为准，可被第三方核对Savings settled on metered data a third party can audit
投运后 2 年持续调试与自控维护，能效不随时间衰减Two years of tuning and controls upkeep after start-up so efficiency doesn’t decay
设计一座 PCB 工厂，不是把 23 个系统各自做对，而是让它们在全生命周期成本上一起成立。Designing a PCB plant is not getting 23 systems right one by one — it is making them add up on whole-life cost.
一家统管，一个责任出口One group, one point of responsibility
12 份交付物，按阶段验收Twelve deliverables, accepted by stage
带上产能目标与厂房平面，我们给出设计范围与进度表Bring a capacity target and a layout; we return scope and schedule
